Figure 21
|

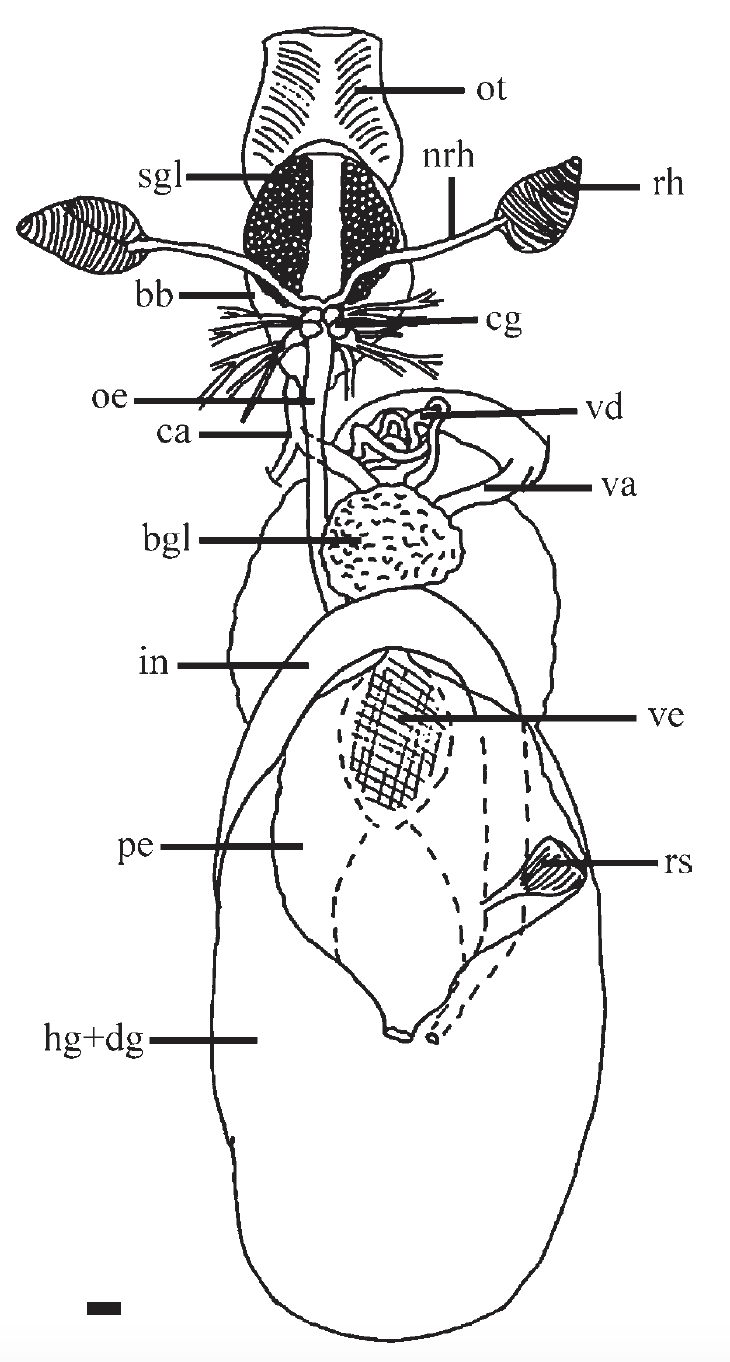

General diagram of Nembrotha kubaryana (Bergh, 1877) anatomy and internal organs. The scale bar represents 1mm. Abbreviations are as follow: bb, buccal bulb; bgl, blood gland; ca, cephalic artery; cg, cerebral ganglion; hg+dg, hermaphrodite gland + digestive gland; in, intestine; nrh, rhinophoral nerve; oe, oesophagus; ot, oral tube; pe, pericardium; rh, rhinophore; rs, renal syrinx; sgl, salivary gland; va, vagina; vd, vas deferens; ve, ventricle.
Image credit: Pola, Cervera and Gosliner, 20082
(http://scientiamarina.revistas.csic.es/index.php/scientiamarina/article/view/761/848)
|
|
|
|
|
|
|
|
|
|
|
